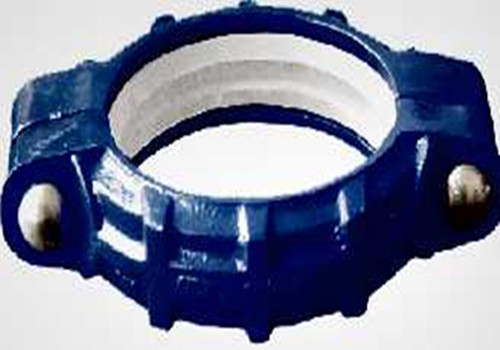

产品名称: High pressure flex clamp

产品参数

Nominal Size (mm/in)		Pipe O,D (mm/in)		工作压力 (PS/Mpa)		Max. end load (N)	Allow Linear Movement mm	Allow angle shift (° ) mm/M		Bolt&nut Size	Dimensions (mm/in)
										No.-Size (毫米)	Ø		l		H
50	2	57	2.244	1450.96	10	10271	0-3.2	1° -31′	28.8	2-M 12*60	90	3.54	124	5.28	50	1.968
50	2	60.3	2.375	1450.96	10	11333	0-3.2	1° -31′	28.8		92	3.662	130	5.91	50	1.968
65	2¹/₂	73.0	2.875	1450.96	10	16846	0-3.2	1° -27‘	25.2	2-M16*75	102	4.02	150	6.06	50	1.968
65	2V₂	76.1	3.000	1450.96	10	18307	0-3.2	1° -12‘	19.2		108	4.25	152	6.78	50	1.968
80	3	88.9	3.500	1450.96	10	24610	0-3.2	1° -02‘	15.4	2-M16*85	112	4.409	168	8.43	50	1.968
100	4	108.0	4.250	1450.96	10	30865	0-3.2	1° -51′	33.3		154	6.063	209	9.76	55	2.165
100	4	114.3	4.500	1450.96	10	32542	0-3.2	1° -36′	29.2		159	6.26	213	10.95	55	2.165
125	5	133.0	5.250	1450.96	10	35010	0-3.2	1° – 41′	30.2	2-M20*100	179	7.047	238	11.18	55	2.165
125	5	139.7	5.500	1450.96	10	51897	0-3.2	1° -19′	20.2		187	7.362	246	13.94	55	2.165
150	6	159.0	6.250	1450.96	10	62921	0-3.2	1° -18‘	20		204	8.03	260	10.236	58	2.283
150	6	165.1	6.500	1450.96	10	73625	0-3.2	1° -05‘	16.2		213	8.386	265	10.433	58	2.283
150	6	168.3	6.625	1450.96	10	73625	0-3.2	1° -05‘	16.2		215	8.465	272	10.709	58	2.283
200	8	193.7	7.626	1160.77	8	112679	0-3.2	1° -45′	13.1	2-M22*130	248	9.764	293	11.535	69	2.716
200	8	219.1	8.625	1160.77	8	113733	0-3.2	1° -50′	13.6		272	10.709	340	13.386	69	2.716
250	10	273.0	10.750	1160.77	8	167879	0-3.2	1° -45′	13.1		320	12.598	424	16.69	72	2.835
300	12	323.9	12.750	1160.77	8	181309	0-3.2	1° -40′	12		382	15.039	454	17.87	72	2.835
