Ultra High Pressure Flex Clamp

Ultra High Pressure Clamp

Ultra High Pressure Flex Clamp

Ultra High Pressure Clamp

Ultra High Pressure Flex Clamp

Ultra High Pressure Flex Clamp

Categories: Grooved Couplings and Fittings, Coupling

Description
Inquiry

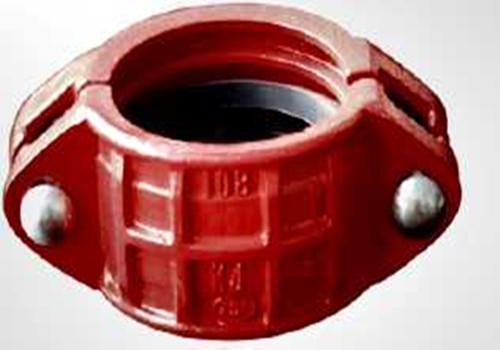

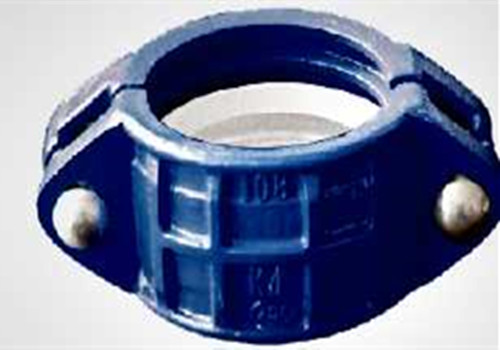

Product Name: Ultra High Pressure Flex Clamp

Product Parameter

Nominal Size (mm/in)		Pipe O.D (mm/in)		Working Pressure (PS/Mpa)		Bolt&nut Size	Dimensions (mm/in)
						No.-Size(mm)	Ø		L		H
50	2	57	2.244	2176.435	15	4-M 10*55	85	3.346	140	5.51	80	3.14
50	2	60.3	2.375	2176.435	15		90	3.543	147	5.78	80	3.14
65	2¹/2	73.0	2.875	2176.435	15	4-M 12*65	105	4.13	180	7.08	80	3.14
65	2¹/2	76.1	3.000	2176.435	15		120	1.72	190	7.48	80	3.14
80	3	88.9	3.500	2176.435	15	4-M 17*75	126	4.95	197	7.75	80	3.14
100	4	708.0	4.250	2176.435	15	4-M 16*75	155	6.1	235	9.25	102	4.015
100	4	114.3	4.500	2176.435	15		162	6.37	240	9.44	102	4.015
125	5	133.0	5.250	2176.435	15		185	7.28	260	10.23	120	4.72
125	5	139.1	5.500	2176.435	15		190	7.48	270	10.62	120	4.72
150	6	159.0	6.250	2176.435	15	4-M 16*85	204	8.03	260	10.236	90	3.543
150	6	165.1	6.500	2176.435	15		218	8.58	345	13.58	127	5
150	6	168.3	6.625	2176.435	15		222	8.74	351	13.81	127	5
200	8	193.7	7.626	1995.065	13.75	4-M 16*100	242	9.527	314	12.362	107	4.212
200	8	219.1	8.625	1995.065	13.75		284	11.18	408	16.06	146	5.74
250	10	273.0	10.750	1741.14	12		341	13.425	473	18.6	162	6.37
300	12	323.9	12.750	1523.5	10.5		395	15.55	512	20.15	162	6.37
350	14	355.6	14	1305.86	9	4-M 22*130	440	17.32	550	21.65	162	6.37
350	14	377.0	14.843	1305.86	9		464	18.26	560	22.04	162	6.37
400	16	406.4	16.00	1305.86	9		510	20.08	620	24.4	162	6.37
400	16	426.0	16.772	1305.86	9		526	20.8	630	24.8	162	6.37
