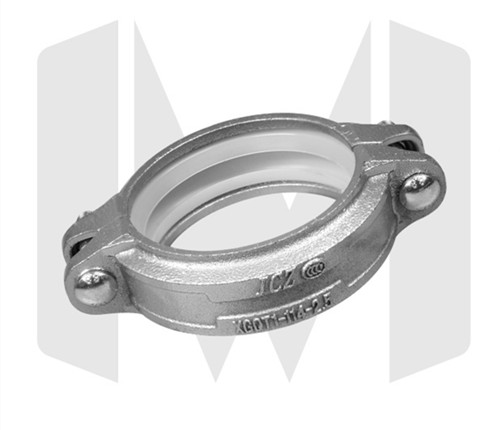

Product Name: Medium pressure steel clamp
1.Product Parameter
| Rated Diameter(mm) | Outside Diameter(mm) | Rated Pressure(Mpa) | Bolts and nuts measurement | Max.measurement (mm) | ||
| Ø | L | H | ||||
| 25 | 33.7 | 2.5 | 2-M10x45 | 61 | 98 | 45 |
| 32 | 42.4 | 70 | 104 | |||
| 40 | 48.3 | 76 | 112 | |||
| 50 | 57 | 2-M10x 55 | 86 | 124 | ||
| 50 | 60.3 | 88 | 124 | |||
| 65 | 76.1 | 102 | 140 | |||
| 80 | 88.9 | 2-M12 x 65 | 118 | 162 | ||
| 90 | 101 .6 | 132 | 1 78 | 48 | ||
| 100 | 108 | 146 | 1 86 | 51 | ||
| 100 | 114.3 | 150 | 195 | |||
| 125 | 133 | 170 | 220 | |||
| 125 | 139.7 | 178 | 21 6 | |||
| 150 | 159 | 2-M12 x 75 | 198 | 246 | ||
| 150 | 165 | 205 | 246 | |||
| 150 | 168.3 | 2-M16 x 85 | 210 | 266 | ||
| 200 | 219.1 | 2-M16 x 100 | 264 | 330 | 60 | |
