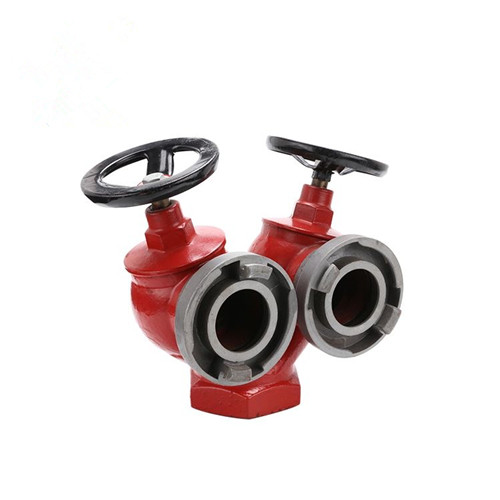

Double valve double outlet indoor fire hydrant

The Double valve double outlet indoor fire hydrant for fire equipment

1.Technical parameter

Product name	Double valve double outlet indoor fire hydrant
Model	SNJ65
Material	made of cast iron or pig iron
Inlet interface	65 mm / 2.5 inch
Intake type	cylindrical pipe male thread
Intake Diameter	G2 1/2
Outlet type	cylindrical pipe male thread with duct buckle
Outlet Diameter	65 mm / 2.5 inch
Rated working pressure	1.6 Mpa
Height of valve opening	23 mm

2.Other typs

Structural mode and specification: single valve with single hydrant for indoor (SN50,SN65),

single valve with double hydrants for indoor (SNS80-65),

double valves with double hydrants for indoor (SNSS80-65), rotary indoor fire hydrant (SNZ65),

pressure reducing and stabilizing fire hydrant (SNW65-I/II/III),

rotary pressure reducing and stabilizing fire hydrant (SNZW65-I/II/III).

All the indoor fire hydrants meet the GB3445-2005 international standard for indoor fire hydrants.

3.Other explain

The double valve double outlet indoor fire hydrant is an important part of the fire water system.

It is installed in the indoor fire Generally nominal diameter (mm):

DN50 DN65, nominal working pressure 1.6 MPa, strength test pressure 2.4 MPa, suitable medium: clear water, foam mixture.
