Conversion Flange
The high quality product Conversion Flange
- Description
- Inquiry

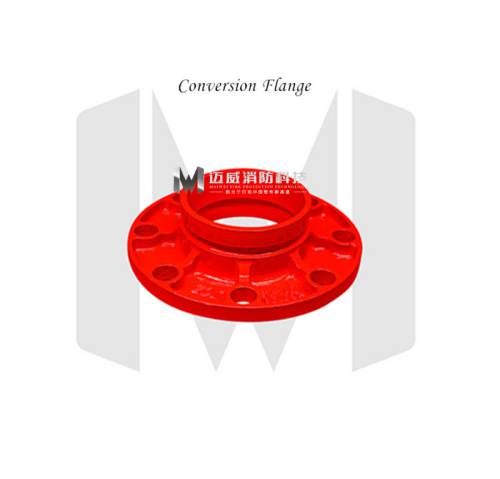

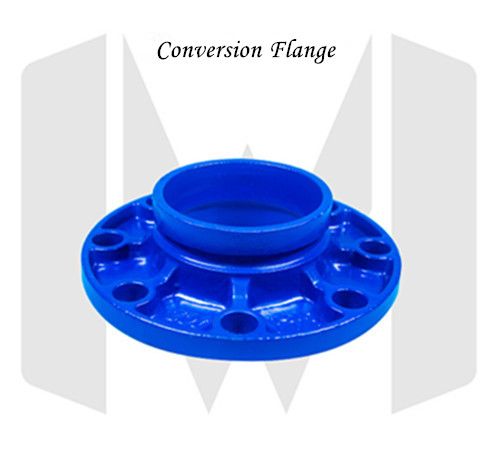

Conversion-flange
Product Name: Conversion Flange
Product Parameter
| The surface treatment can be electrostatic spray and dip coating | |||||||
| Nominal diameter mm | external diameter mm | working pressure Mpa | size HKD | Bolt hole size | |||
| L | X | Y | Z | ||||
| 50 | 60. 3 | 2. 5Mpa | 53 | 160 | 125 | 20 | 4-4>18 |
| 65 | 76. 1 | 53 | 180 | 145 | 20 | 4-4>18 | |
| 80 | 88.9 | 56 | 195 | 160 | 20 | 8-4>18 | |
| 100 | 108 | 57 | 237 | 180 | 19 | 8-4>18 | |
| 100 | 114.3 | 57 | 216 | 180 | 20 | 8-4>18 | |
| 125 | 133 | 58 | 237 | 210 | 18 | 8-4>18 | |
| 125 | 139.7 | 58 | 244 | 210 | 21 | 8-4>18 | |
| 150 | 159 | 68 | 285 | 240 | 20 | 8-4>22 | |
| 150 | 165.1 | 68 | 285 | 240 | 21 | 8-4>22 | |
| 200 | 219.1 | 72 | 330 | 295 | 26 | 1222 | |
| 250 | 273 | 85 | 395 | 355 | 28 | 1228 | |
| 300 | 325 | 102 | 460 | 410 | 28 | 1228 | |
Related Products

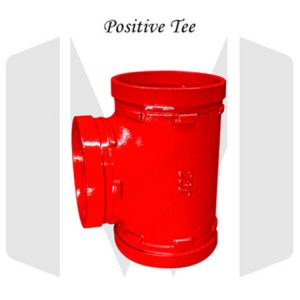

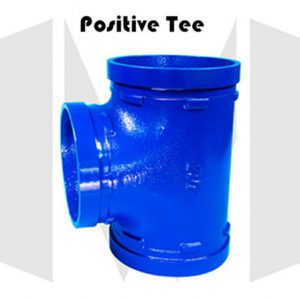

Positive tee
The positive tee is mainly used to change the direction of the fluid and is used at the main pipe branch.

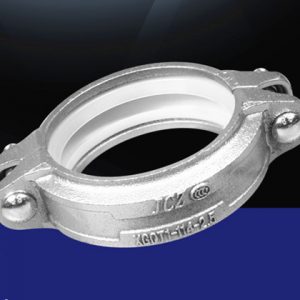

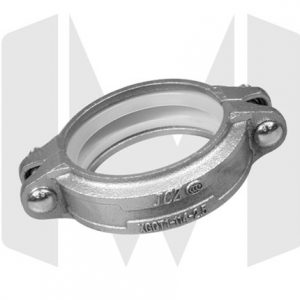

Medium pressure steel clamp
Medium pressure steel clamp

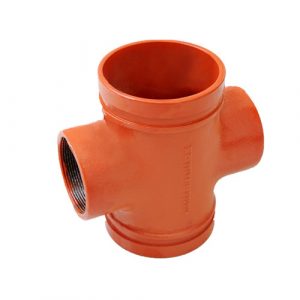

Thread reducing cross
Thread reducing cross

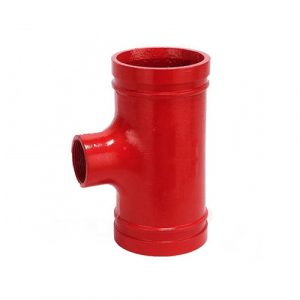

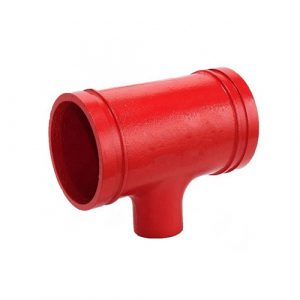

Thread reducing tee
Thread reducing tee is widely used in many fields

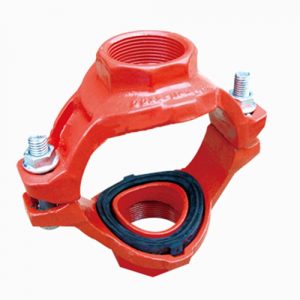

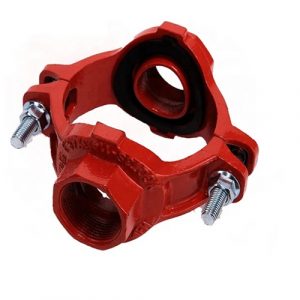

Thread mechanical cross
Thread mechanical cross

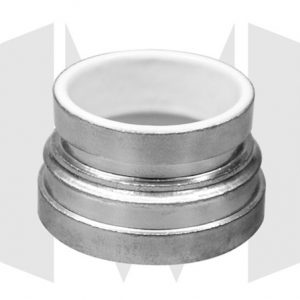

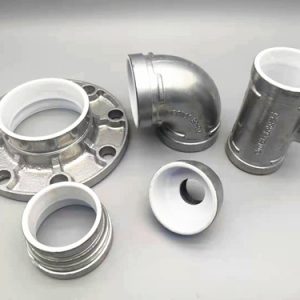

Plastic lined reducing pipe
Plastic lined reducing pipe based on ordinary carbon steel pipe

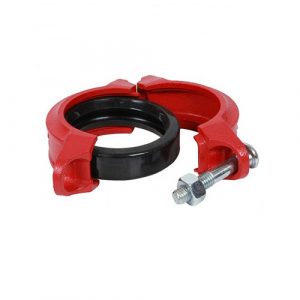

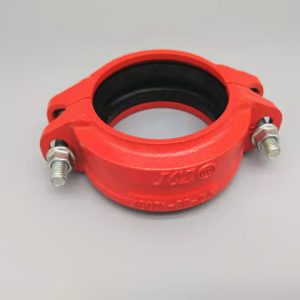

Rigid clamp
Rigid clamp

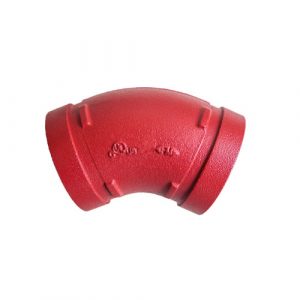

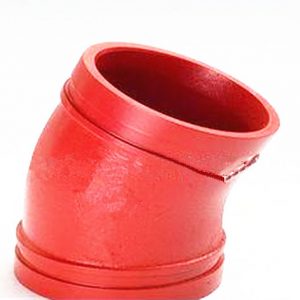

22.5° ELBOW
The high quality 22.5° Elbow can be customed.

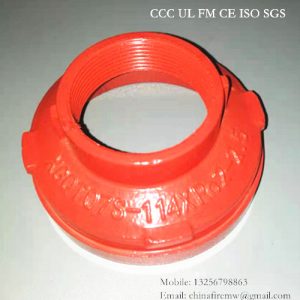

Thread reducing pipe
Thread reducing pipe all the sizes produced

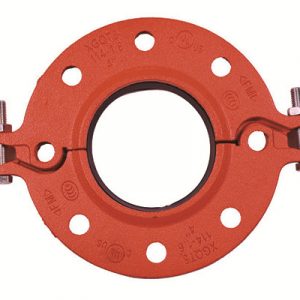

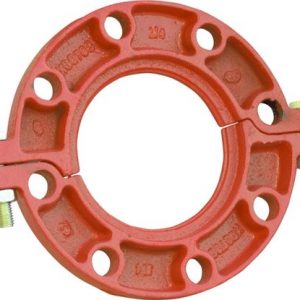

Pipe clamp flange
