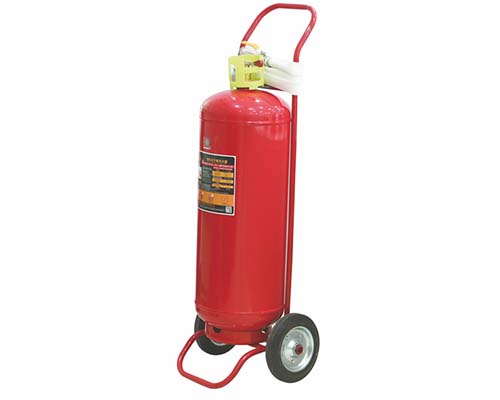

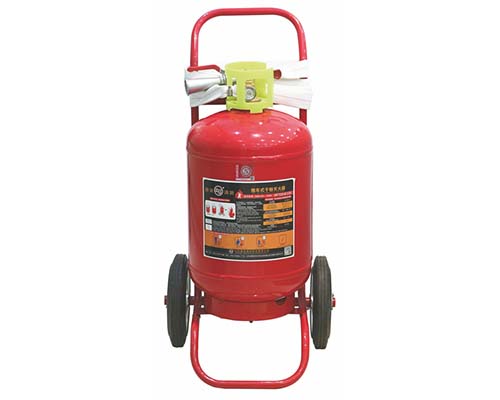

Cart type dry powder fire extinguishers
The Cart type dry powder fire extinguishers is used to extinguish fire
- Description
- Inquiry
Product Name: Cart type dry powder fire extinguishers
1.Technical parameter
| Model | MFZ/ABC50 |
| agent | 75% ammonium dihydrogen phosphate 15% ammonium sulfate |
| capacity | 50Kg |
| gas | N2 |
| working pressure | 1.2MPa |
| test pressure | 2.1MPa |
| discharge time | 40s |
| spraying distance | 7.5m |
| level | 10A.233B.C.E.F |
| Temperature | -20℃~+55℃ |
| Standard | GB8109-2005 |
| Bursting Pressure | >6.43Mpa |
| mm/height | 1400 |
| mm/diameter | 314 |
| mm/Min Wall-thickness | 3 |
| weight | 73kg |
| Reassemble the instructions | 1. The fire extinguisher is turned on, 2. The pointer of the pressure gauge reaches the red area, 3. The fire extinguisher has a service life of 10 years, 4. The fire extinguisher is a high-pressure container, and annual inspection is required. |
2.Other models

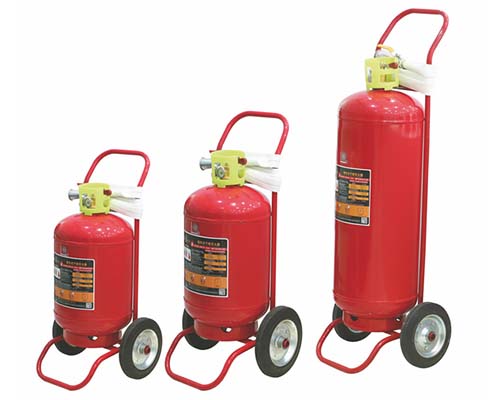

| Product Name | Wheeled Dry Powder Fire Extinguisher | ||
| Type | 25kg | 35kg | 50kg |
| SKU number | DT-DPW25 | DT-DPW35 | DT-DPW50 |
| Capacity | 30L | 40L | 59L |
| Cylinder high | 520mm | 655mm | 860mm |
| Diameter | 320mm | ||
| Work Pressure | 15Bar | ||
| Test Pressure | 25Bar | ||
| Spray Range | above 6m | ||
| Discharge Time | above 40s | ||
| Spray Surplus Rate | ≤10 | ||
| Tempeture Range | -30~55℃ | ||
