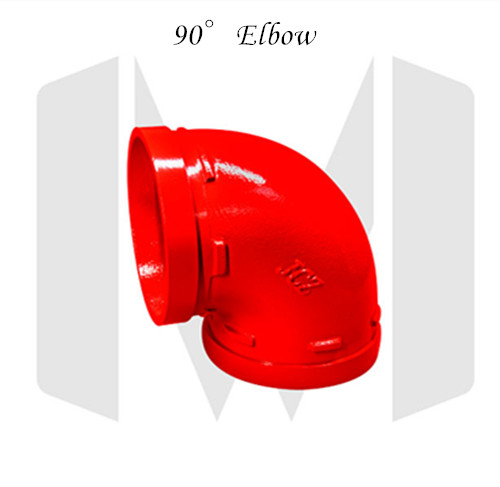

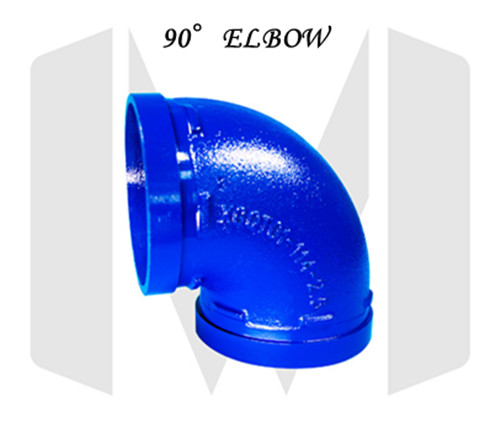

90° Elbow
90° Elbow of the grooved couplings and fittings
- Description
- Additional Information
- Inquiry
1.Product parameter
| Rated Diamete(mm) | Rated Pressure(mm) | Mpa Rated Pressure | measurement(mm) |
| 50 | 57 | 84 | |
| 50 | 60.3 | 84 | |
| 65 | 76.1 | 90 | |
| 80 | 88.9 | 94 | |
| 100 | 108 | 104 | |
| 100 | 114.3 | 104 | |
| 125 | 133 | 2.5 | 122 |
| 125 | 139.7 | 122 | |
| 150 | 159 | 142 | |
| 150 | 165 | 142 | |
| 150 | 168.3 | 142 | |
| 200 | 219.1 | 179 | |
| 250 | 273 | 215 | |
| 300 | 323.9 | 245 | |
| 350 | 377 | 1.6 | 356 |
2.90° Elbow Compliance with national standards GB5135.11-2006 and Europe and America system HPIVS/P1001-316-4
3.We can custom 90°Elbow according to customer requirements.
4.According to the working pressure, it is divided into five grades :
0.25 MPa、0.6MPa、1.0MPa、1.6MPa、2.5MPa.
5.Classification:
JGD flexible synthetic joints,
JGD-A flexable bispherical joint,
JGD-A1 reinforced flexable double ball joint,
JGD-A2 flexable double-spherical wire connector,
JGD-B type elastic pipe shock absorber (diameters joint),
JGD-C fan coil joint,
JGD-D diaphragm,
WTX flexable synthetic Elbow,
ZT、ZTB、ZTG damping spring isolator,
HTXDJ type elastic hanger, etc.
Additional Information
| Craft | Electrostatic spray epoxy |
|---|---|
| Features | Preservative,Long life,Anti-pollution,Anti-oxidation |
