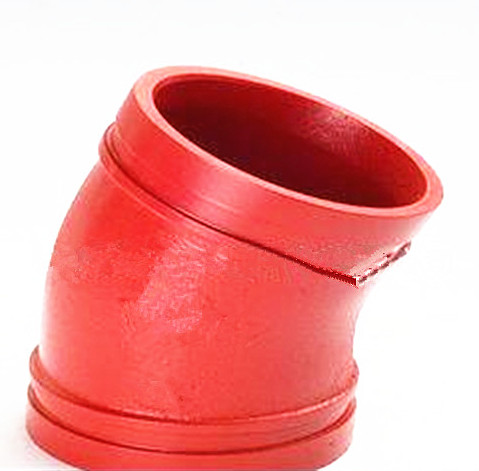

22.5° ELBOW
The high quality 22.5° Elbow can be customed.
- Description
- Inquiry

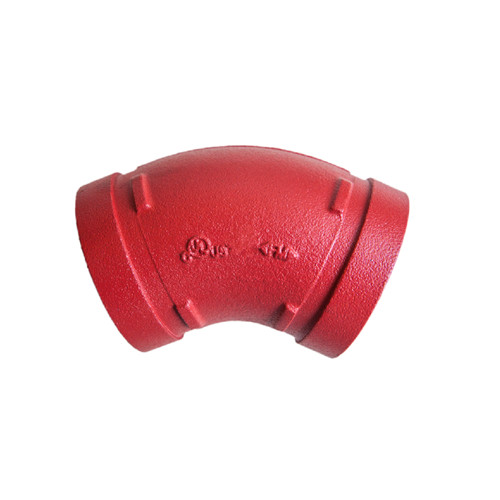

22.5° ELBOW
Product Name: 22.5° Elbow
1.Product parameter
| ND(mm) | Rated Diamete(mm） | Rated Pressure（Mpa） | Max.measurement (mm) |
| 80 | 88.9 | 2.5 | 57 |
| 100 | 108 | 73 | |
| 100 | 114.3 | 73 | |
| 125 | 133 | 73 | |
| 125 | 139.7 | 73 | |
| 150 | 159 | 79 | |
| 150 | 165 | 79 | |
| 150 | 168.3 | 79 | |
| 200 | 219.1 | 98 | |
| 250 | 273 | 121 |
